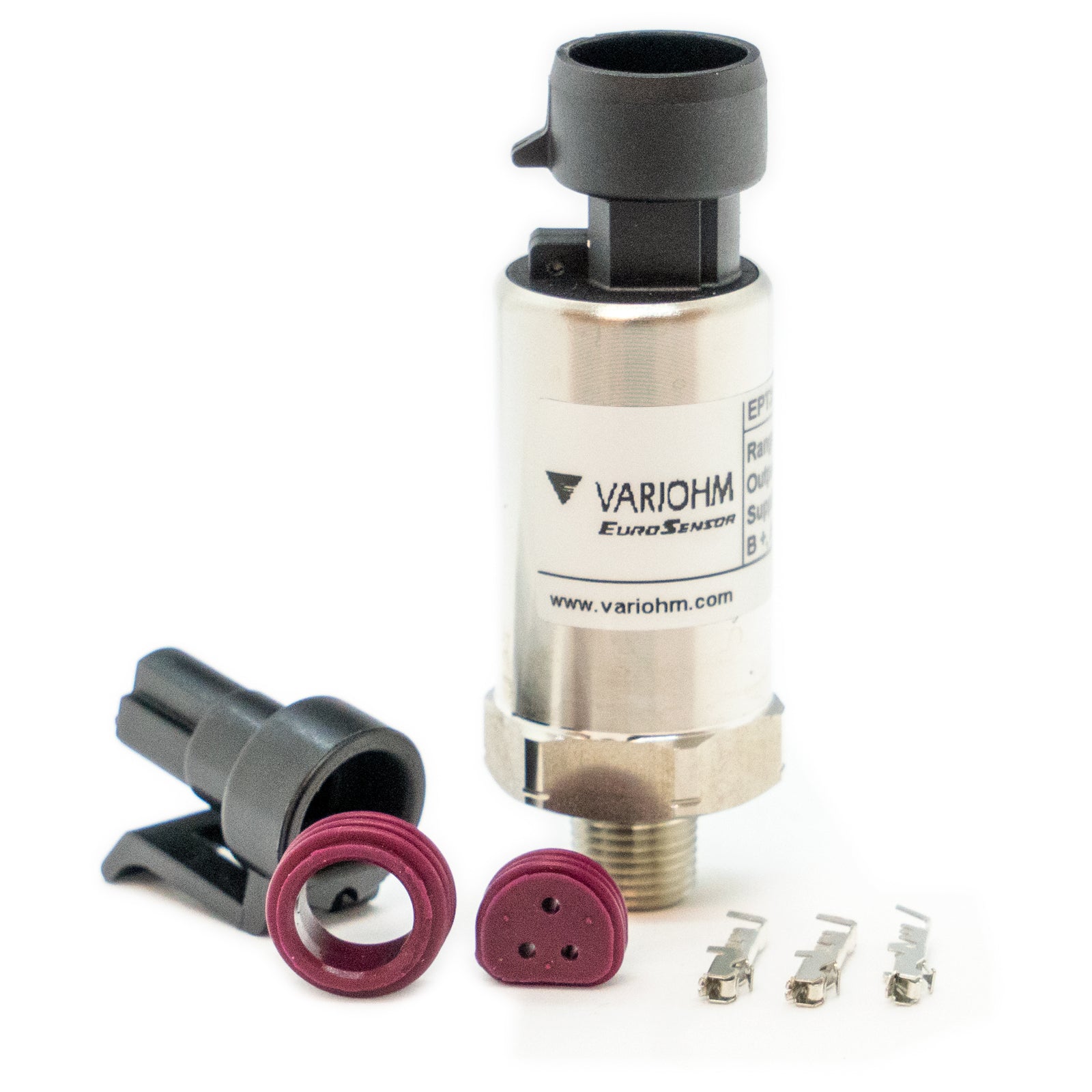

The Link 8 Bar MAP Sensor EU is designed for accurate manifold pressure readings in extreme high-boost turbocharged and supercharged applications. Reading up to 8 Bar absolute pressure, it is suitable for engines running up to approximately 7 Bar, or around 101 PSI, of boost pressure.
This sensor includes the plug and pins for installation and is ideal for high-boost performance, motorsport, and custom ECU setups.
Key Features
- 8 Bar absolute pressure range
- Suitable for turbocharged and supercharged engines
- Supports up to approximately 7 Bar / 101 PSI of boost
- Includes plug and pins
- Compatible with Link G4, G4+, and G4X ECUs
- Ideal for extreme high-boost applications
Connection Details
- Calibration: 0 kPa = 0.5V, 800 kPa = 4.5V
- Pin A: 0V
- Pin B: 5V
- Pin C: Signal
- Select “Variohm 8 Bar” as the MAP sensor type in PCLink
