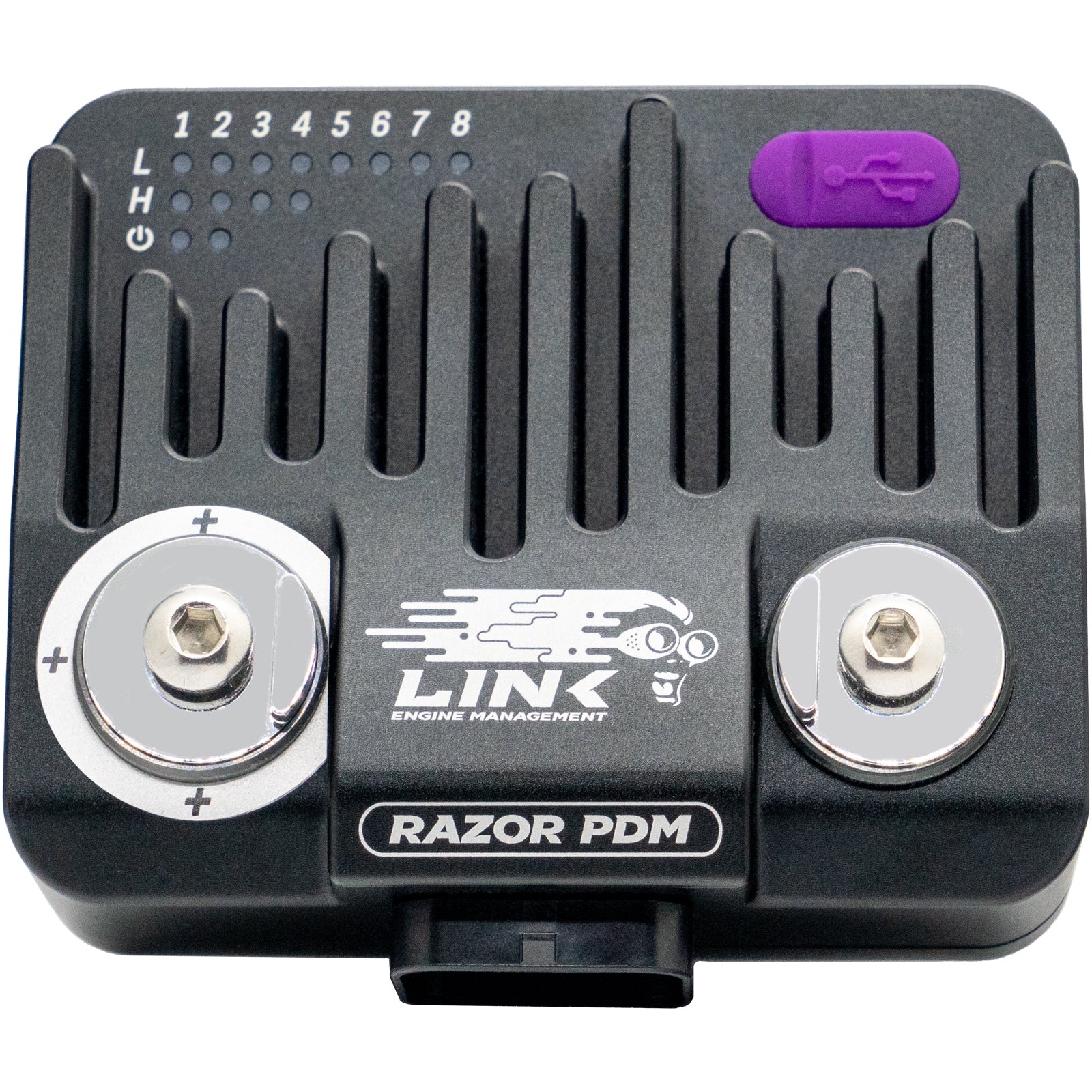

The Link Razor PDM is a programmable Power Distribution Module designed to manage power delivery to vehicle components.
It can process inputs from ECUs, CAN keypads, switches, or sensors, and can be used to control outputs such as lights, fans, fuel pumps, electronic throttles, and servos.
Key Features
-
Programmable Power Distribution Module
-
Designed to replace traditional fuse and relay setups
-
Can be used with a Link ECU
-
Can be used as a standalone device
-
Supports analog and digital sensor signal monitoring
-
Configurable through Link PDM software
-
CAN communication support
-
USB-C configurable
Output Details
-
4 high-power outputs capable of 25A continuous
-
8 universal A/D I/O pins
-
Universal A/D I/O pins can be used as 8A outputs or analog/digital inputs
-
Supports PWM output control
-
Supports high-side drive
-
Supports low-side drive
-
Supports paired H-bridge actuator motor control
Protection Features
- Over-current protection
- Short-circuit protection
- Configurable trip parameters
- Resettable fuse parameters
Box Contents
- Link Razor PDM
- Mounting plate and screws
- Superseal plug and pin kit
- USB-C connection cable
- Positive terminal insulation boot
- 2 high-current ring terminals and bolts
- Quickstart guide
Important Notes
- CAN setup and PDM configuration are required
- Professional wiring and installation are recommended
