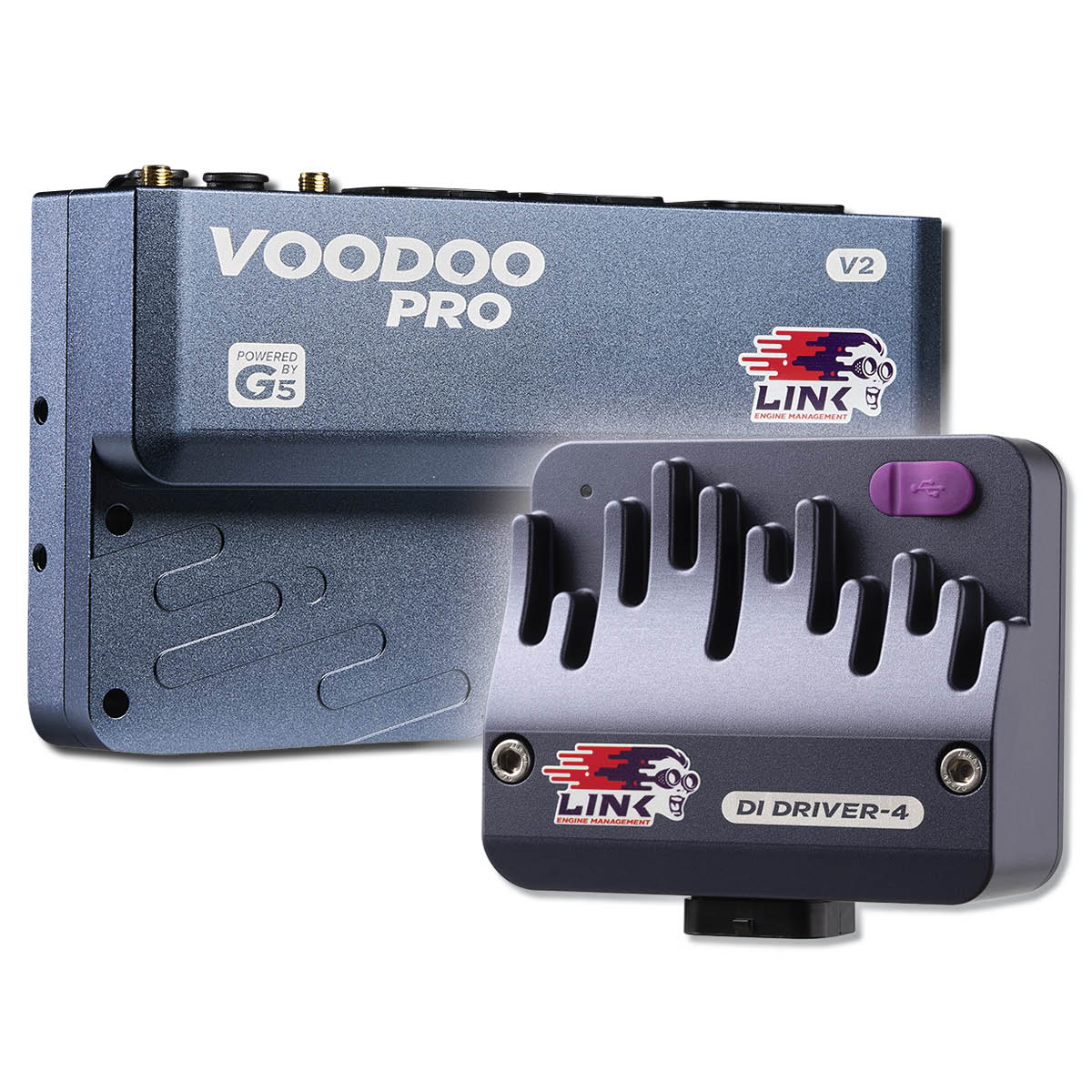

The Link G5 Voodoo Pro + DI Driver-4 Bundle combines the G5 Voodoo Pro ECU with one DI Driver-4 module for direct injection control.
The G5 Voodoo Pro ECU features 12 injector channels, 8 ignition outputs, and 4 multi-purpose drives. The included DI Driver-4 module can handle up to 4 direct injectors and one high-pressure fuel pump.
Key Features
- Includes G5 Voodoo Pro ECU
- Includes 1 x DI Driver-4 module
- 12 injector channels
- 8 ignition outputs
- 4 multi-purpose drives
- Supports port and direct injection control
- DI Driver-4 controls up to 4 direct injectors
- DI Driver-4 supports one high-pressure fuel pump
- Built-in Wi-Fi
- Built-in GPS
- Dual onboard wideband lambda controllers
- Dual e-throttle support
- Up to 24 drives total
- Flexible auxiliary outputs depending on setup
- CAN communication
- USB setup support for DI Driver-4 module
Important Notes
- Direct injection requires compatible DI driver hardware
- DI Driver-4 is scalable via CAN
- Refer to the G5 Voodoo Pro and DI Driver-4 product information for full specifications
- Professional wiring, installation, and tuning are recommended
