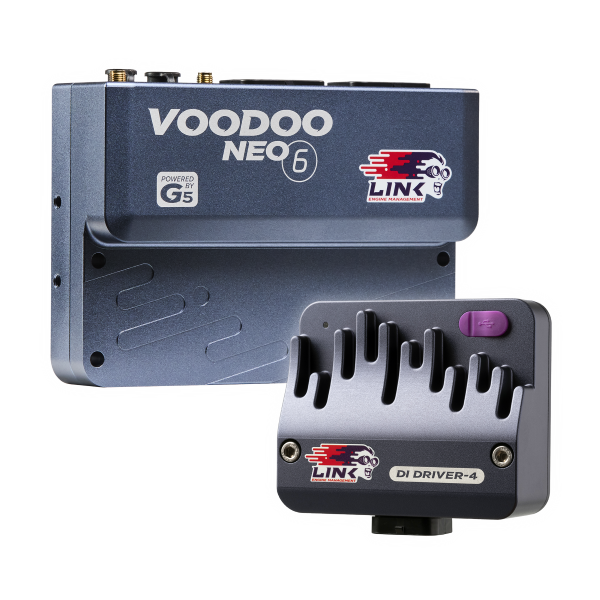

The Link G5 Voodoo Neo 6 + DI Driver-4 Bundle combines the G5 Voodoo Neo 6 ECU with one DI Driver-4 module for direct injection control.
The G5 Voodoo Neo 6 ECU supports up to 8-cylinder port or direct injection applications, or up to 6-cylinder direct/port staged injection applications. The included DI Driver-4 module can control up to 4 direct injectors.
Key Features
- Includes G5 Voodoo Neo 6 ECU
- Includes 1 x DI Driver-4 module
- Supports up to 8 cylinders with port or direct injection and direct spark
- Supports up to 6 cylinders with direct/port staged injection and direct spark
- DI Driver-4 controls up to 4 direct injectors
- 12 injector pins
- 8 ignition pins
- 6 auxiliary output pins
- 6 ADIO pins
- 1GB onboard logging memory
- 1 onboard wideband controller
- Dual onboard e-throttle H-bridge outputs
- USB-C connectivity
- Ethernet connectivity
- Wi-Fi support
- GPS support
- CAN connectivity
Important Notes
- 4 auxiliary pins are shared with 4 DI pins
- Shared pins can only be used for either Injection or DI, not both at the same time
- DI Driver-4 modules are stackable for expanded direct injection systems
- Professional wiring, installation, and tuning are recommended
