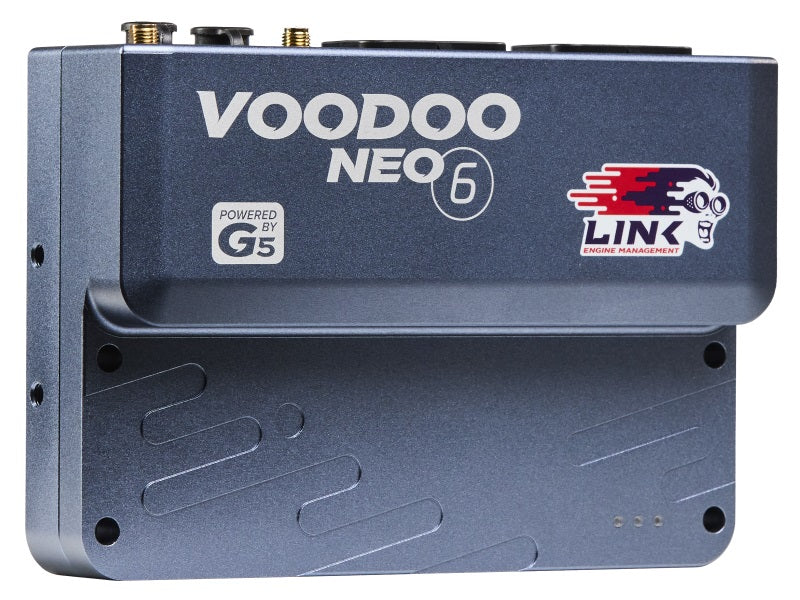

The Link G5 Voodoo Neo 6 ECU is a G5 wire-in ECU for port injection, direct injection, and staged port/direct injection applications.
The G5 Voodoo Neo 6 can run up to 8 cylinders with port or direct injection and direct spark, or up to 6 cylinders with direct/port staged injection and direct spark.
Key Features
- Link G5 Voodoo Neo 6 ECU
- Supports up to 8 cylinders with port or direct injection and direct spark
- Supports up to 6 cylinders with direct/port staged injection and direct spark
- 12 injector pins
- 8 ignition pins
- 6 auxiliary output pins
- 6 ADIO pins
- 1GB onboard logging memory
- 1 onboard wideband controller
- Dual onboard e-throttle H-bridge outputs
- USB-C connectivity
- Ethernet connectivity
- Wi-Fi support
- GPS support
- CAN connectivity
- Sealed CNC enclosure
Important Notes
- 4 auxiliary pins are shared with 4 DI pins
- Shared pins can only be used for either Injection or DI, not both at the same time
- Professional wiring, installation, and tuning are recommended
