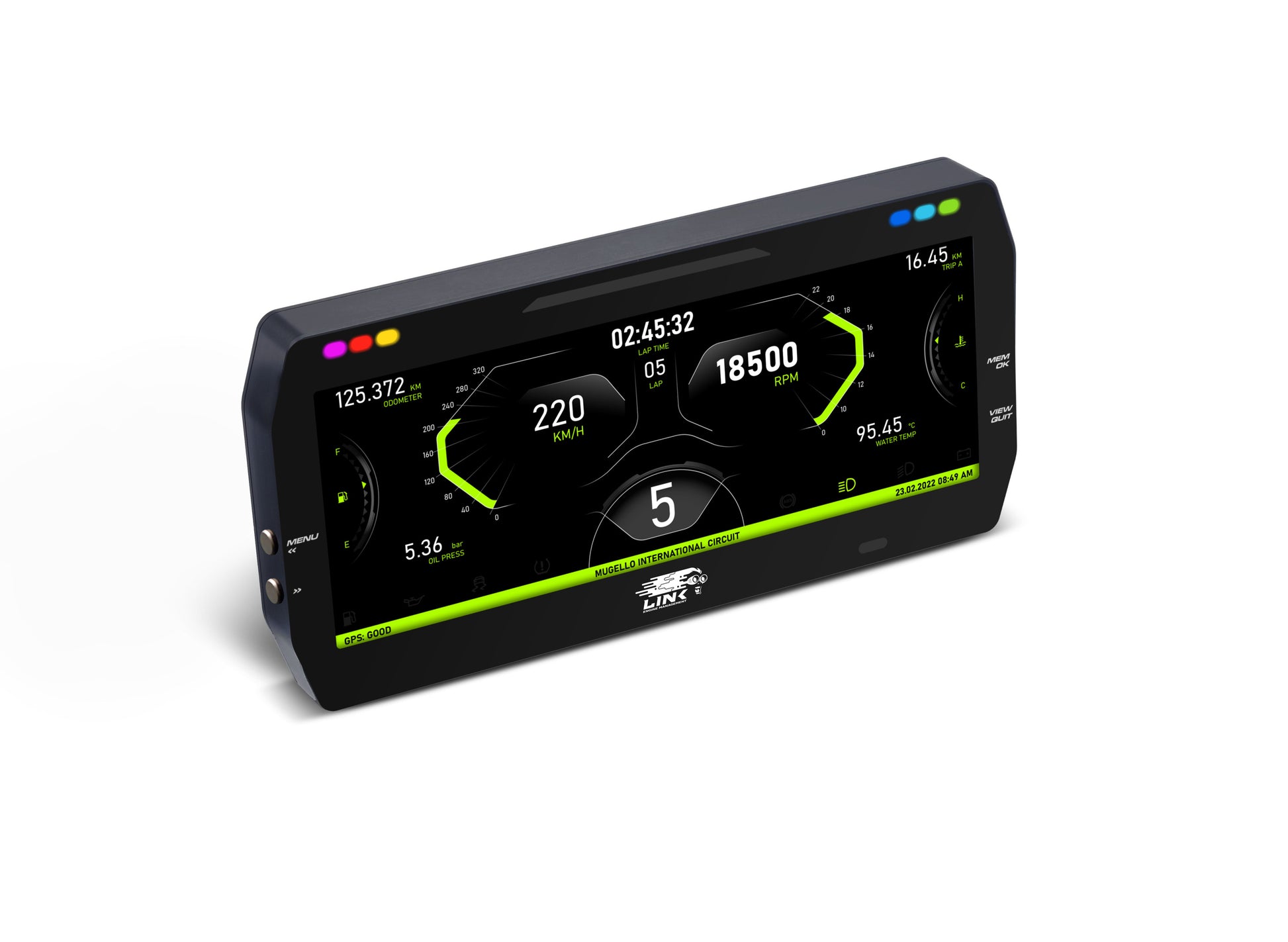

The Link MXT Strada 10-inch Dash Race Edition is a full-color dash display powered by AIM. It is pre-configured to work with Link G4+, G4X, and G5 Wire-In and PlugIn ECUs.
Key Features
- 10-inch full-color TFT dash display
- Race Edition
- 10 configurable RGB shift lights
- 6 configurable RGB alarm LEDs
- High-contrast display
- Ambient light sensor
- CAN ECU connection
- Configurable through Link PCLink and AIM Race Studio 3
- GPS module available separately
Box Contents
- Link MXT Strada 10-inch Dash
- USB cable
- 14-pin standard wiring
- 23-pin connector and contacts
Specifications
- Display: 10-inch TFT
- Resolution: 1280 x 480 pixels
- Contrast: 1000:1
- CAN connections: 3
- ECU connection: CAN
- Analog inputs: 8
- Digital inputs: speed input, coil RPM input
- Digital output: 1
- Second CAN: yes
- Dimensions: 278 x 135 x 43.2mm
- Weight: 1200g
- Waterproof rating: IP65
