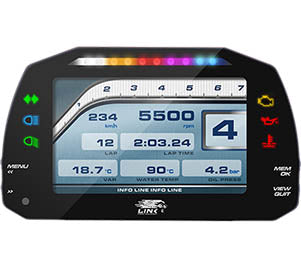

The Link MXS Strada 5-inch Dash Street Edition is a full-color dash display powered by AIM. It is pre-configured to work with Link G4+ and G4X Wire-In and PlugIn ECUs.
Key Features
- 5-inch full-color TFT dash display
- Street Edition
- 10 configurable RGB shift lights
- 6 RGB street icons
- High-contrast display
- Ambient light sensor
- CAN ECU connection
- Configurable through Link PCLink and AIM Race Studio 3
- GPS module available separately
Box Contents
- Link MXS 1.2 Strada Dash
- USB cable
- 14-pin standard wiring
- 23-pin connector and contacts
Specifications
- Display: 5-inch TFT
- Resolution: 800 x 480 pixels
- Contrast: 600:1
- CAN connections: 2
- ECU connection: CAN
- Analog inputs: 8
- Digital inputs: speed input, coil RPM input
- Dimensions: 169.4 x 97 x 23mm
- Weight: 480g
- Power consumption: 400mA
- Waterproof rating: IP65
