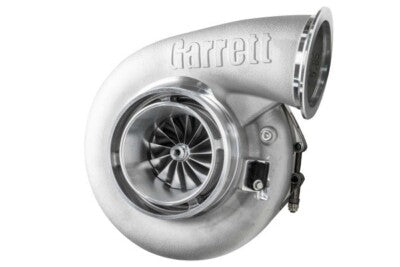

Garrett G-Series G45-1350 72mm Supercore
The Garrett G-Series G45-1350 72mm Supercore is rated for approximately 650–1350 horsepower and engine displacements from 2.0L to 8.0L. This listing is for the Supercore assembly, not a complete turbocharger with turbine housing.
Key Features
- G-Series compressor aerodynamics
- 72mm compressor inducer
- 102mm compressor exducer
- 89mm turbine inducer
- Inconel turbine wheel flows up to 56 lb/min
- Dual ceramic ball bearing cartridge with steel cages
- Lightweight aluminum backplate
- Fully machined speed sensor and pressure ports
- Water fittings included with Supercore
- Stainless steel turbine housing options available
Specifications
- Product Type: Supercore
- Part Number: 888169-5004S
- Horsepower Range: 650–1350 HP
- Displacement Range: 2.0L–8.0L
- Compressor Inducer: 72mm
- Compressor Exducer: 102mm
- Turbine Inducer: 89mm
Note: Turbine housings and other installation components are sold separately. Performance results depend on vehicle modifications, supporting components, and tuning/calibration.
