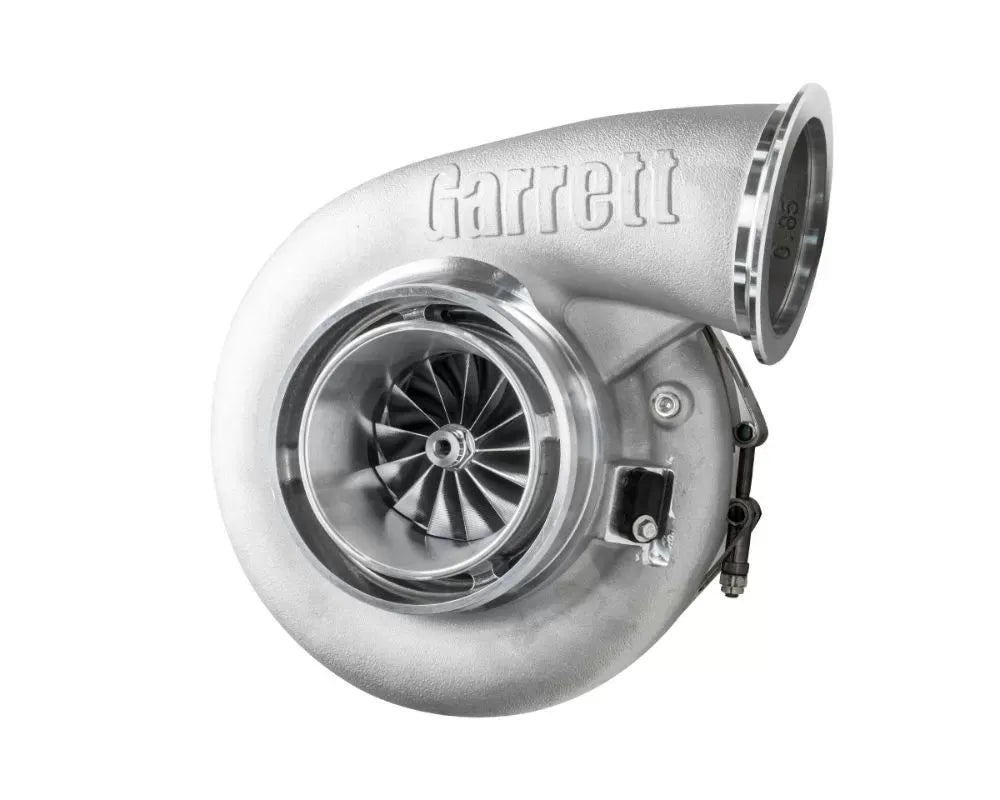

Garrett G-Series G47-1550 76mm Supercore
The Garrett G-Series G47-1550 76mm Supercore is rated for approximately 825–1550 horsepower and engine displacements from 2.5L to 10.0L. This listing is for the Supercore assembly, not a complete turbocharger with turbine housing.
Key Features
- Outline interchangeable with GTX Gen II turbochargers
- 76mm compressor inducer
- 109mm compressor exducer
- High-flow GTX Gen II compressor aerodynamics
- G-Series turbine wheel aero increases performance compared to GTX47 Gen II
- One-piece lightweight aluminum center housing and backplate
- T6 turbine housing outlet length reduced 17mm compared to GTX
- G47 turbine housing kits available in T6 inlet and V-band outlet configurations
Specifications
- Product Type: Supercore
- Part Number: 880547-5023S
- Horsepower Range: 825–1550 HP
- Displacement Range: 2.5L–10.0L
- Compressor Inducer: 76mm
- Compressor Exducer: 109mm
- Compressor Trim: 49
- Compressor A/R: 0.88
- Turbine Inducer: 93mm
- Turbine Exducer: 88mm
- Turbine Trim: 90
Note: Turbine housings and other installation components are sold separately. Performance results depend on vehicle modifications, supporting components, and tuning/calibration.
