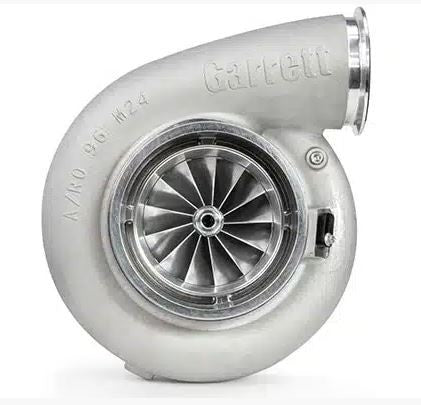

Garrett G-Series G55-2250 94mm Supercore
The Garrett G-Series G55-2250 94mm Supercore is rated for approximately 1000–2250 horsepower and engine displacements from 3.0L to 12.0L. This listing is for the Supercore assembly, not a complete turbocharger with turbine housing.
Key Features
- G-Series compressor aerodynamics
- 94mm compressor inducer
- 133mm compressor exducer
- 112mm turbine inducer
- 106mm turbine exducer
- 15% more turbine flow compared to GTX
- One-piece aluminum center housing
- 16mm dual ceramic ball bearing cartridge
- Outline interchangeable with GTX Gen II and G57 turbochargers
- Stainless steel turbine housing kits sold separately
Specifications
- Product Type: Supercore
- Part Number: 880547-5004S
- Horsepower Range: 1000–2250 HP
- Displacement Range: 3.0L–12.0L
- Compressor Inducer: 94mm
- Compressor Exducer: 133mm
- Compressor A/R: 0.96
- Turbine Inducer: 112mm
- Turbine Exducer: 106mm
- Turbine Trim: 90
Note: Turbine housings and other installation components are sold separately. Performance results depend on vehicle modifications, supporting components, and tuning/calibration.
