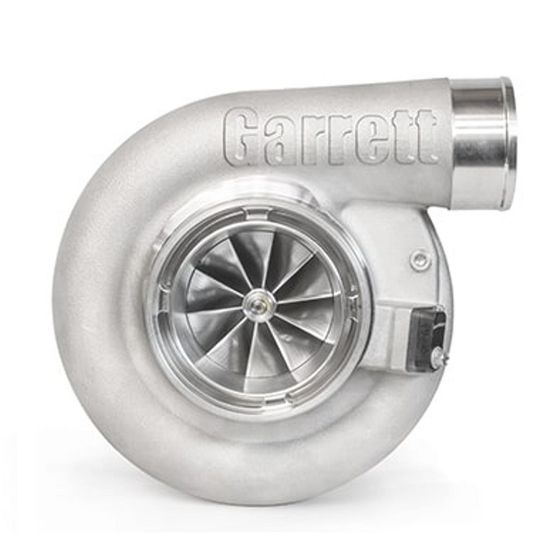

Garrett G-Series G42-1450 79mm Supercore
The Garrett G-Series G42-1450 79mm Supercore is rated for approximately 525–1450 horsepower and engine displacements from 2.0L to 8.0L. This listing is for the Supercore assembly, not a complete turbocharger with turbine housing.
Key Features
- G-Series compressor aerodynamics
- 79mm compressor inducer
- 98mm compressor exducer
- 82mm turbine inducer
- 75mm turbine exducer
- Fully machined speed sensor and pressure ports
- New turbine wheel aero for increased flow and efficiency
- Stainless steel turbine housing options available
- Water fittings included
- Compatible with G42 turbine housing options
Specifications
- Product Type: Supercore
- Part Number: 860778-5006S
- Horsepower Range: 525–1450 HP
- Displacement Range: 2.0L–8.0L
- Compressor Inducer: 79mm
- Compressor Exducer: 98mm
- Compressor Trim: 65
- Compressor A/R: 0.85
- Turbine Inducer: 82mm
- Turbine Exducer: 75mm
- Turbine Trim: 84
Note: Turbine housings and other installation components are sold separately. Performance results depend on vehicle modifications, supporting components, and tuning/calibration.
