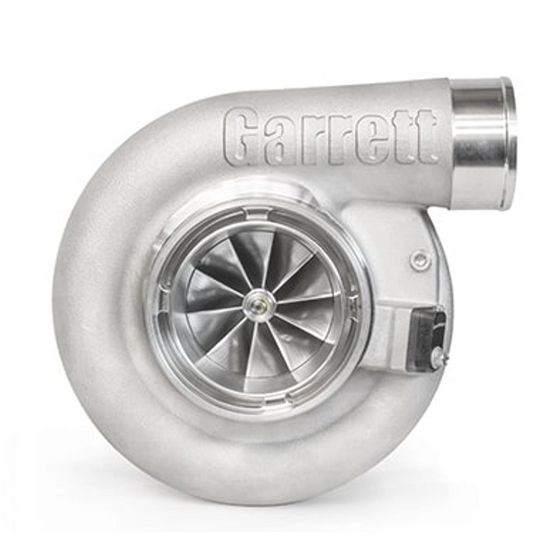

Garrett G-Series G40-1150 71mm Supercore
The Garrett G-Series G40-1150 71mm Supercore is rated for approximately 500–1150 horsepower and engine displacements from 2.0L to 6.0L. This listing is for the Supercore assembly, not a complete turbocharger with turbine housing.
Key Features
- G-Series compressor aerodynamics
- 71mm compressor inducer
- 88mm compressor exducer
- 77mm turbine inducer
- 70mm turbine exducer
- Dual ceramic ball bearing cartridge with steel cages
- Lightweight aluminum backplate
- Fully machined speed sensor and pressure ports
- Water fittings included with Supercore
- Compatible with G40 turbine housing options
Specifications
- Product Type: Supercore
- Part Number: 860777-5002S
- Horsepower Range: 500–1150 HP
- Displacement Range: 2.0L–6.0L
- Compressor Inducer: 71mm
- Compressor Exducer: 88mm
- Compressor Trim: 65
- Compressor A/R: 0.80
- Turbine Inducer: 77mm
- Turbine Exducer: 70mm
- Turbine Trim: 84
Note: Turbine housings and other installation components are sold separately. Performance results depend on vehicle modifications, supporting components, and tuning/calibration.
