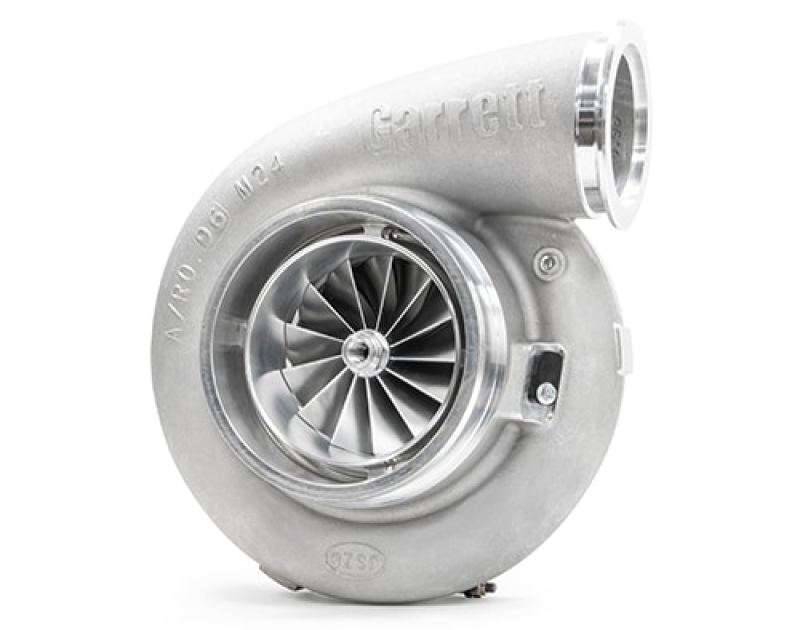

Garrett GTX5544R Gen II 106mm Supercore
The Garrett GTX5544R Gen II 106mm Supercore is rated for approximately 1400–2850 horsepower and engine displacements from 3.0L to 12.0L. This listing is for the Supercore assembly, not a complete turbocharger with turbine housing.
Key Features
- GTX Gen II compressor wheel aerodynamics
- 106mm compressor inducer
- 144mm compressor exducer
- 112mm turbine inducer
- 102mm turbine exducer
- Lightweight billet backplate
- Backplate-to-compressor-housing O-ring design
- 0.96 A/R compressor housing
- Compatible with GT, GTX, and GTX5533R turbine housings
- Supercore and turbine housing sold separately
Specifications
- Product Type: Supercore
- Part Number: 851285-5022S
- Horsepower Range: 1400–2850 HP
- Displacement Range: 3.0L–12.0L
- Compressor Inducer: 106mm
- Compressor Exducer: 144mm
- Compressor Trim: 54
- Compressor A/R: 0.96
- Turbine Inducer: 112mm
- Turbine Exducer: 102mm
- Turbine Trim: 84
Note: Turbine housings and other installation components are sold separately. Performance results depend on vehicle modifications, supporting components, and tuning/calibration.
