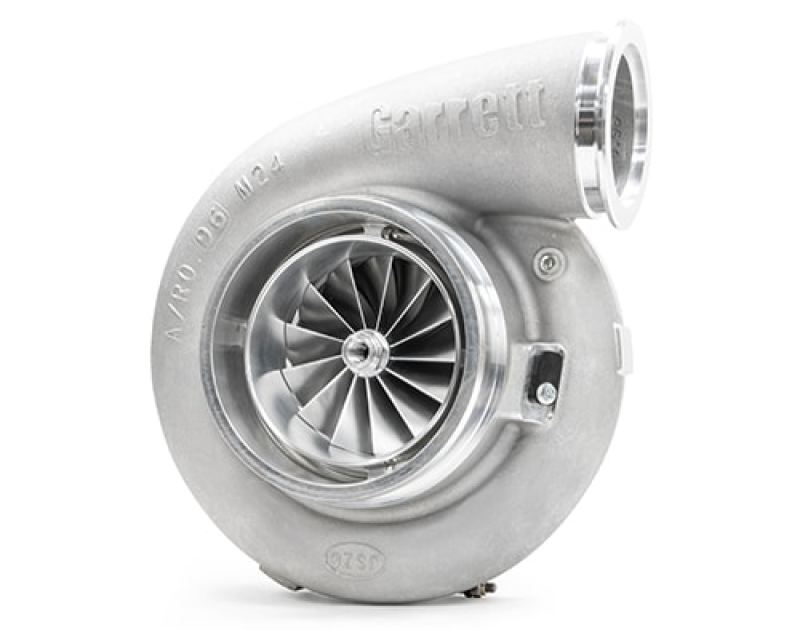

Garrett GTX5020R Gen II 88mm Supercore
The Garrett GTX5020R Gen II 88mm Supercore is rated for approximately 1075–2050 horsepower and engine displacements from 2.8L to 11.0L. This listing is for the Supercore assembly, not a complete turbocharger with turbine housing.
Key Features
- GTX Gen II compressor wheel aerodynamics
- 88mm compressor inducer
- 120mm compressor exducer
- 99mm turbine inducer
- 91mm turbine exducer
- 9% increased compressor flow
- Larger 0.88 A/R compressor housing volute
- Compatible with GT and GTX turbine housings
- Supercore and turbine housing sold separately
Specifications
- Product Type: Supercore
- Part Number: 851285-5020S
- Horsepower Range: 1075–2050 HP
- Displacement Range: 2.8L–11.0L
- Compressor Inducer: 88mm
- Compressor Exducer: 120mm
- Compressor Trim: 54
- Compressor A/R: 0.88
- Turbine Inducer: 99mm
- Turbine Exducer: 91mm
- Turbine Trim: 84
- Maximum Turbocharger Speed: 93 krpm
Note: Turbine housings and other installation components are sold separately. Performance results depend on vehicle modifications, supporting components, and tuning/calibration.
