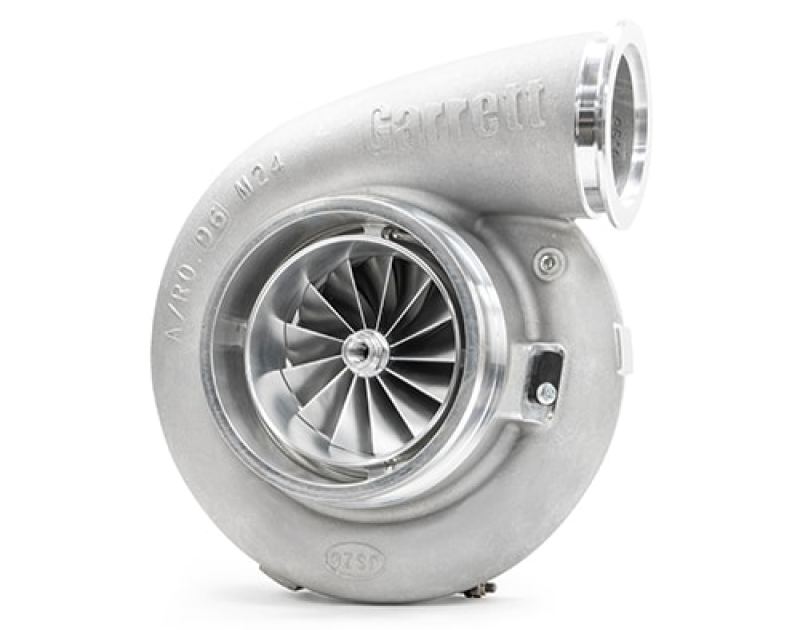

Garrett GTX5009R Gen II 80mm Supercore
The Garrett GTX5009R Gen II 80mm Supercore is rated for approximately 875–1700 horsepower and engine displacements from 2.5L to 10.0L. This listing is for the Supercore assembly, not a complete turbocharger with turbine housing.
Key Features
- GTX Gen II compressor wheel aerodynamics
- 80mm compressor inducer
- 109mm compressor exducer
- 99mm turbine inducer
- 91mm turbine exducer
- 15% increased flow
- Larger 0.88 A/R compressor housing volute
- Compatible with GT and GTX turbine housings
- Supercore and turbine housing sold separately
Specifications
- Product Type: Supercore
- Part Number: 851285-5017S
- Horsepower Range: 875–1700 HP
- Displacement Range: 2.5L–10.0L
- Compressor Inducer: 80mm
- Compressor Exducer: 109mm
- Compressor Trim: 54
- Compressor A/R: 0.88
- Turbine Inducer: 99mm
- Turbine Exducer: 91mm
- Turbine Trim: 84
- Maximum Turbocharger Speed: 102.5 krpm
Note: Turbine housings and other installation components are sold separately. Performance results depend on vehicle modifications, supporting components, and tuning/calibration.
