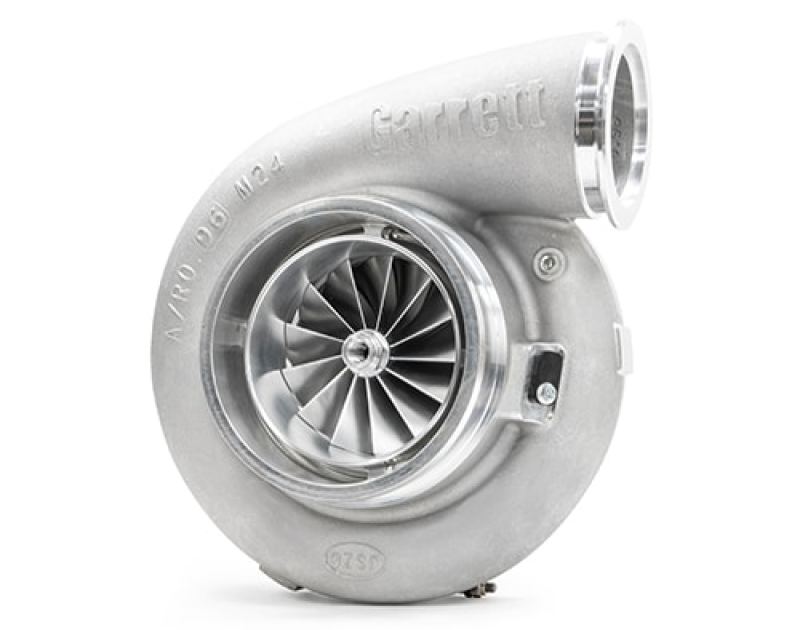

Garrett GTX5533R Gen II 88mm Supercore
The Garrett GTX5533R Gen II 88mm Supercore is rated for approximately 1000–1900 horsepower and engine displacements from 3.0L to 12.0L. This listing is for the Supercore assembly, not a complete turbocharger with turbine housing.
Key Features
- GTX Gen II compressor aerodynamics
- 88mm compressor inducer
- 133mm compressor exducer
- 112mm turbine inducer
- 102mm turbine exducer
- Flows up to 172 lb/min
- Rated up to 1900 horsepower
- Fully machined speed sensor port
- Improved ported shroud design for surge resistance
- Lightweight billet backplate
- V-band compressor outlet configuration
- SFI Supercore and turbine housing options available
Specifications
- Product Type: Supercore
- Part Number: 851285-5002S
- Horsepower Range: 1000–1900 HP
- Displacement Range: 3.0L–12.0L
- Compressor Inducer: 88mm
- Compressor Exducer: 133mm
- Compressor Trim: 44
- Compressor A/R: 0.88
- Turbine Inducer: 112mm
- Turbine Exducer: 102mm
- Turbine Trim: 84
- Maximum Turbocharger Speed: 84 krpm
Note: This is a Supercore assembly. Turbine housings and other installation components may be sold separately. Performance results are dependent on vehicle modifications, supporting components, and tuning/calibration. Use above maximum turbocharger speed is at the owner's risk and may result in damage or premature failure. A speed sensor may be installed in the compressor housing to monitor shaft speed. Sensors sold separately.
