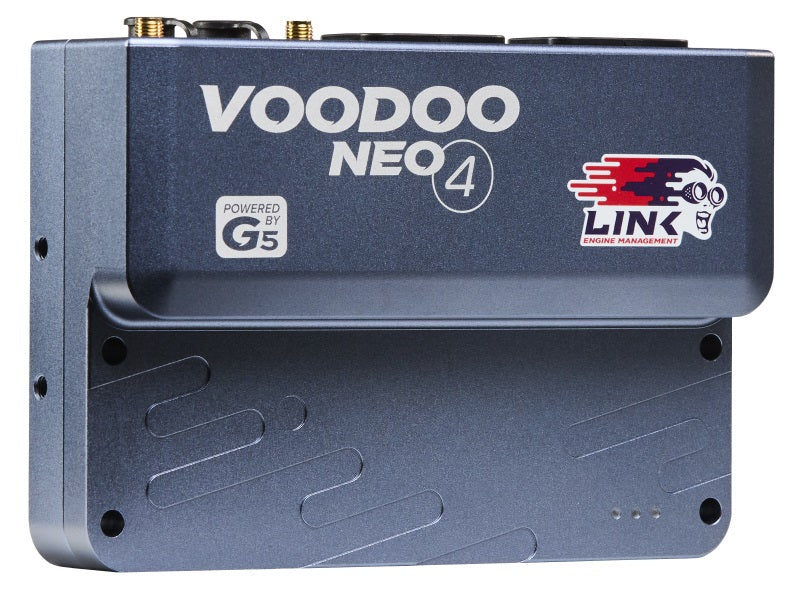

The Link G5 Voodoo Neo 4 ECU is a G5 wire-in ECU designed for port injection, direct injection, and staged port/direct injection applications.
The Voodoo Neo 4 can run up to 6 cylinders with port or direct injection and direct spark, or 4 cylinders with direct / port staged injection and direct spark.
Key Features
- Link G5 Voodoo Neo 4 ECU
- Supports up to 6 cylinders with port or direct injection and direct spark
- Supports up to 4 cylinders with direct / port staged injection and direct spark
- 8 injector pins
- 6 ignition pins
- 12 auxiliary output pins
- 6 ADIO pins
- 3 analog inputs
- 10 digital inputs
- 4 temperature inputs
- 2 knock inputs
- 2 trigger inputs
- 1GB onboard logging
- 1 onboard wideband
- Built-in Ethernet
- Wi-Fi support
- GPS support
- USB-C connection
- K-line support
- Sealed CNC enclosure
- 68 pins total using Link A and B 34-pin Superseal connectors
What’s Included
- G5 Voodoo Neo 4 ECU
- USB-C connection cable
- Wi-Fi antenna
- 4m GPS antenna
- USB-C and SMA dust covers
- QuickStart Guide
- Installer I/O table
- Link stickers
Important Notes
- Four auxiliary pins are shared with four DI pins and can only be used for either injection or DI, not both at the same time
- Runs on PCLink software
- Professional wiring, installation, and tuning are recommended
