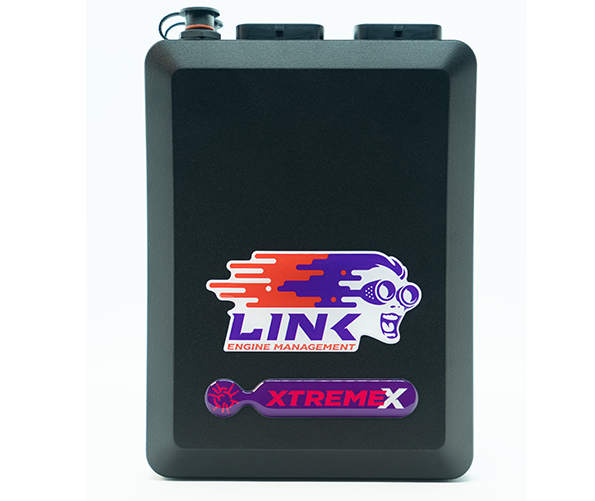

The Link G4X XtremeX is one of Link ECU’s premium standalone engine management systems, designed for serious street, track, and professional motorsport applications. With expanded inputs, outputs, advanced motorsport strategies, and built-in electronic throttle control, the XtremeX is ideal for high-performance builds that need more flexibility and control than entry-level ECU options.
With 8 injector drives and 8 ignition drives, the XtremeX can control up to 8-cylinder engines or 4-rotor applications with sequential injection and direct spark. It also includes advanced features such as anti-lag, launch control, traction control, cruise control, gear shift control, closed-loop lambda strategies, dual CAN communication, and onboard data logging.
Key Features
- Premium standalone ECU for professional motorsport and demanding street applications
- Built-in electronic throttle control
- Supports up to 8-cylinder or 4-rotor engines
- 8 injector drives and 8 ignition drives
- Advanced motorsport functions including anti-lag, launch control, traction control, and gear shift control
- Cruise control support
- Dual CAN bus capability
- Advanced closed-loop lambda strategy with dual bank lambda control
- 512MB onboard data logging
- Faster communication speed than previous G4+ models
Inputs
- 8/10 digital inputs
- 4 temperature inputs
- 11 analog inputs
- 2 trigger inputs
- 2 knock inputs
Outputs
- 8 injection drives
- 8 ignition drives
- 10 auxiliary outputs
- +5V sensor power supply
- +8V sensor power supply
- Unused fuel and ignition drives can be used as additional auxiliary outputs
Communications & Logging
- 2 CAN bus channels
- 1 serial RS232 connection
- 1 USB tuning connection
- 512MB onboard data logging
- Improved communication speed compared to G4+ models
Advanced Motorsport Features
- Fully programmable electronic throttle control
- Gear shift throttle blip capability
- Anti-lag control
- Launch control
- Traction control
- Full gear shift control
- Cruise control
- 30 general purpose tables
- Dual independent CAN modules
- Advanced closed-loop lambda and dual bank lambda control
Physical Specifications
- Dimensions: 185mm L x 130mm W x 40mm H, without looms
- Weight: 680g
What’s Included
- Link G4X XtremeX ECU
- USB tuning cable
- Mounting bracket
Important Notes
- Requires Link “A” and “B” looms or “A” and “B” connector kits for installation, sold separately
- 2 digital inputs are required when using the second CAN bus
- For peak and hold injector applications, contact Link ECU for the correct G4+ Xtreme ECU option
- For onboard digital wideband lambda control, consider the Link G4X Fury ECU
- Professional installation and tuning are strongly recommended
