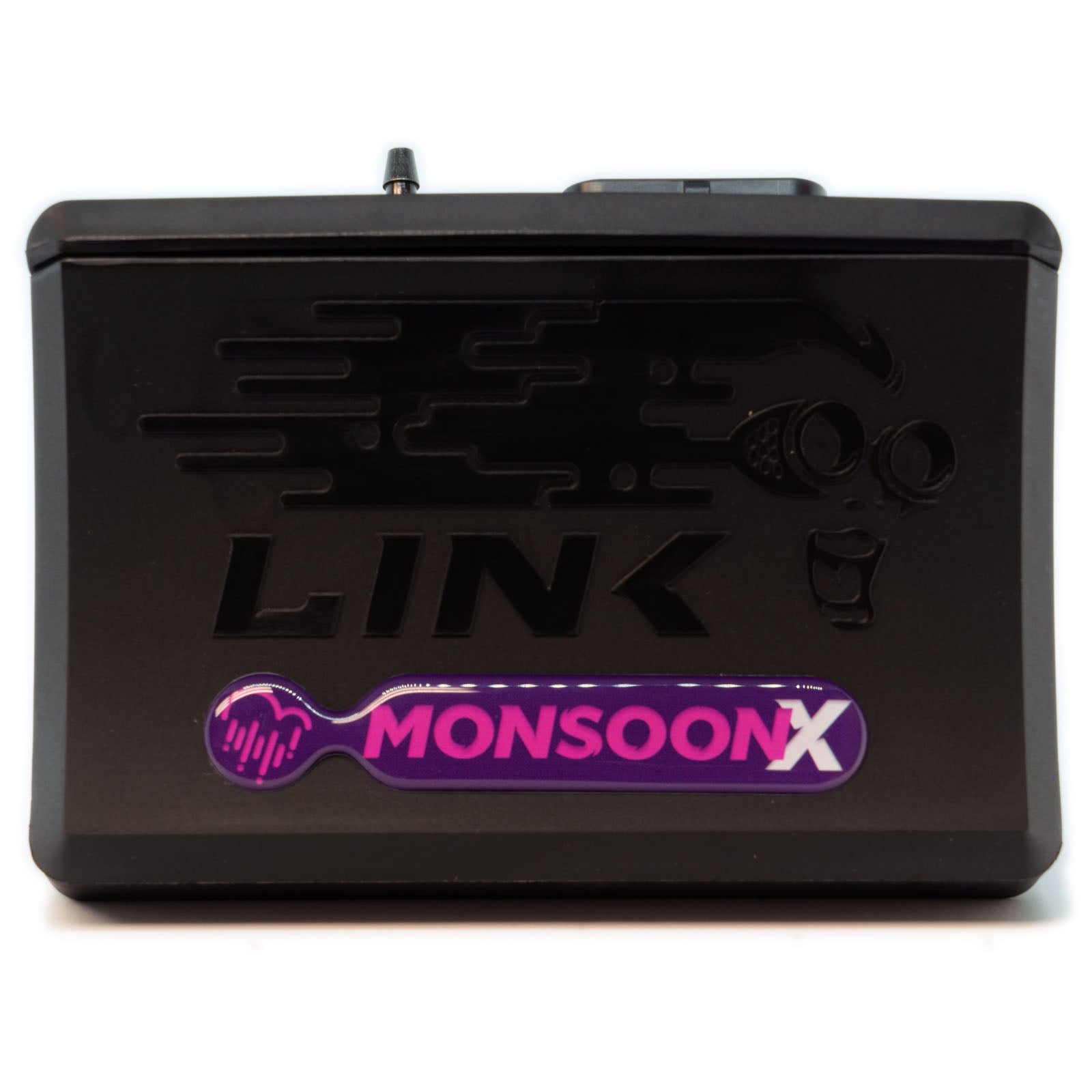

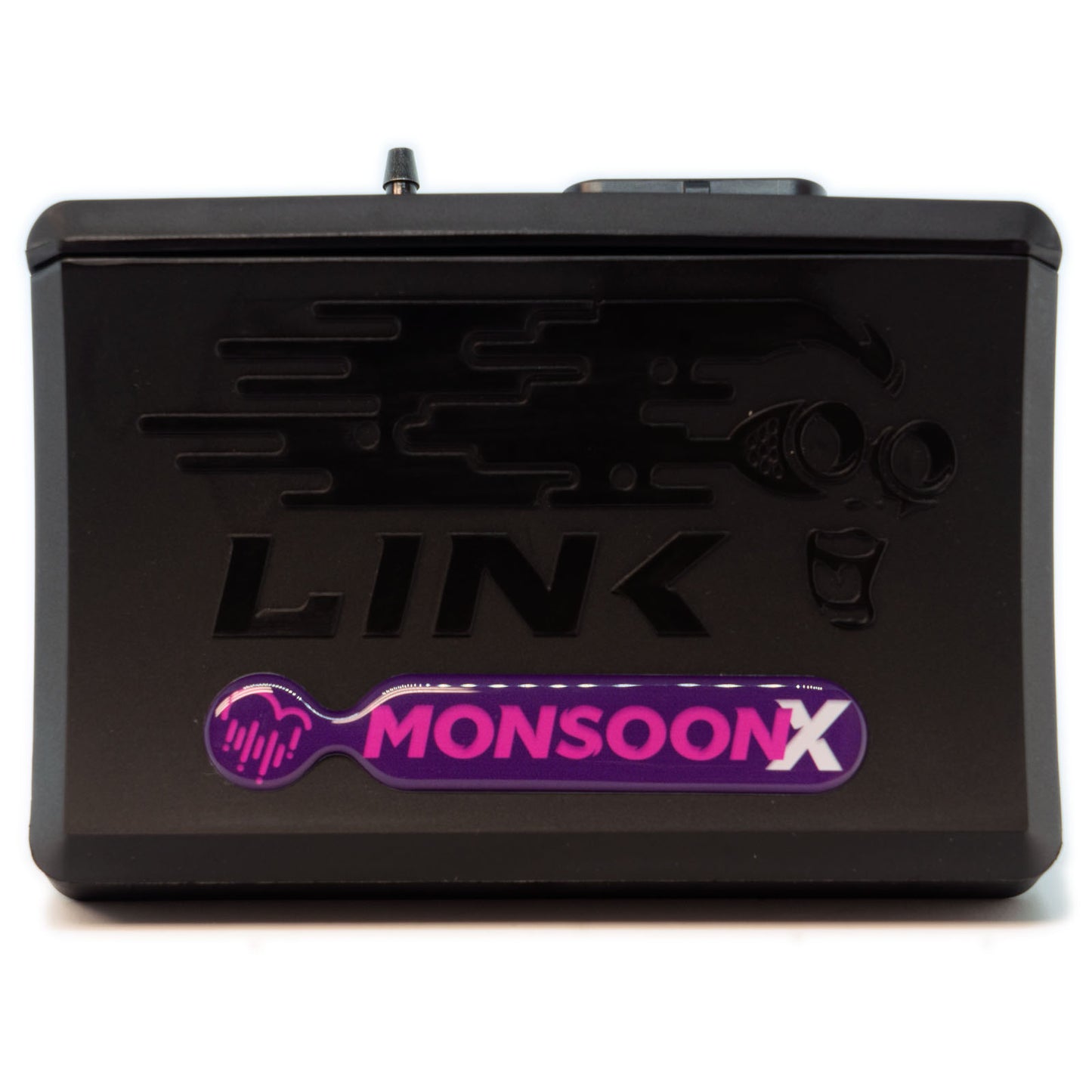

The Link G4X MonsoonX ECU is a wire-in ECU from Link’s G4X range. It can control up to 2 rotors or 4 cylinders with sequential injection and direct spark, or up to 8 cylinders using batch fire.
The MonsoonX features a 4 Bar onboard MAP sensor, knock control, CAN communication, USB tuning connection, and 512MB onboard data logging. It requires a Link “A” loom for installation.
Key Features
- Link G4X wire-in ECU
- Controls up to 2 rotors or 4 cylinders sequentially
- Supports up to 8 cylinders using batch fire
- 4 injector drives
- 4 ignition drives
- 6 auxiliary outputs
- 4 digital inputs
- 2 temperature inputs
- 4 analog inputs
- 2 trigger inputs
- 1 knock input, shared with DI4
- 1 onboard 4 Bar MAP sensor
- 1 CAN bus
- 1 USB tuning connection
- 512MB onboard data logging
- 20 general purpose tables
- Runs on PCLink software for G4X
- Engine Configurations
- 1-12 cylinder distributed
- 2-8 cylinder wasted spark
- 1-4 cylinder direct spark
- Odd fire engines
- 2-stroke engines
- Configurable firing order
- Configurable TDC points for odd fire
Physical Specifications
- Dimensions: 95mm L x 130mm W x 45mm H, without loom
- Weight: 220g
What’s Included
- Link G4X MonsoonX ECU
- Waterproof connectors
- Mounting bracket
- USB tuning cable
Important Notes
- Requires Link “A” loom, sold separately
- Professional installation and tuning are recommended
