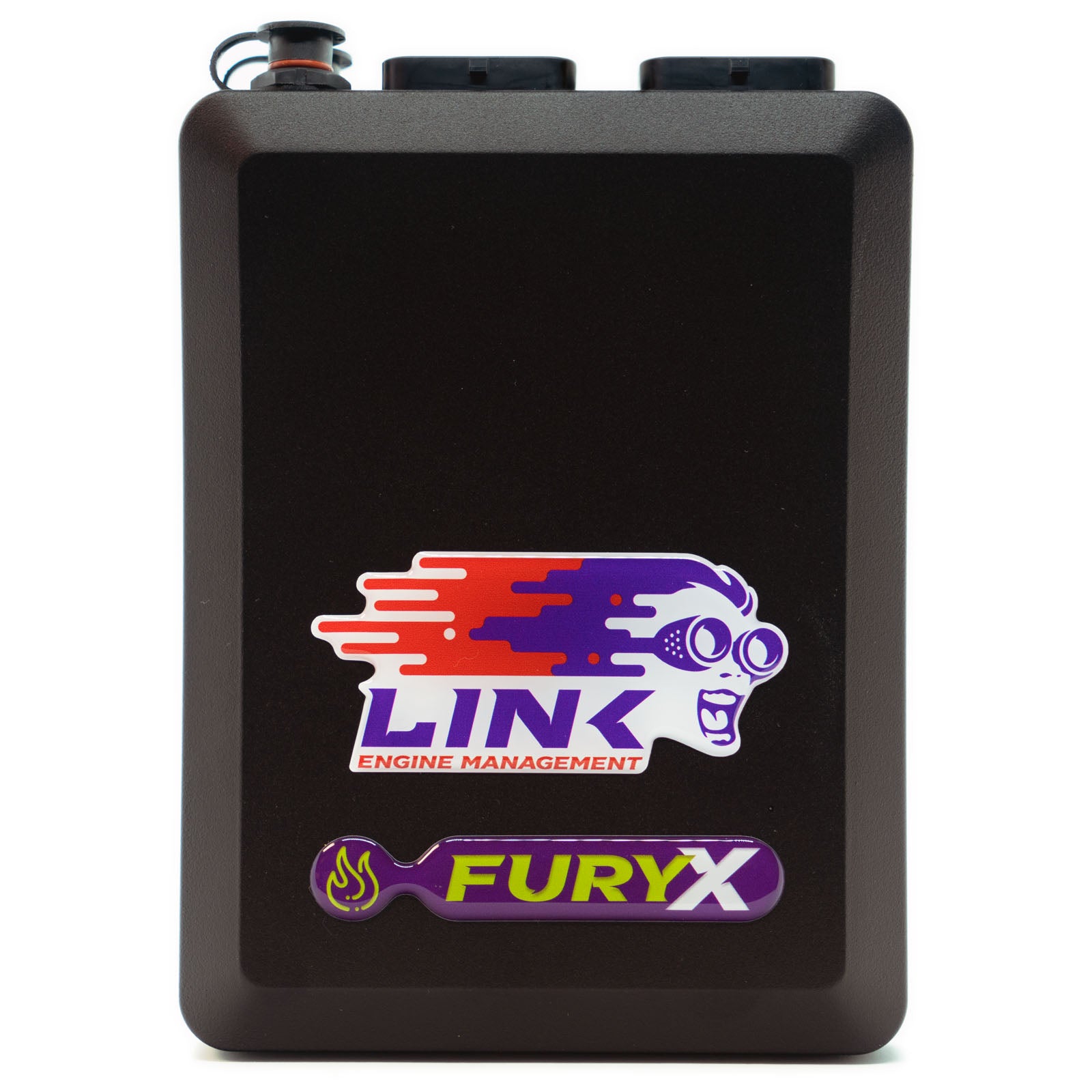

The Link G4X FuryX ECU is a premium wire-in ECU with onboard digital wideband lambda control. It can control up to 3 rotors or 6 cylinders with sequential injection and direct spark.
The FuryX features 8 injector drives, 6 ignition drives, 10 auxiliary outputs, 2 CAN bus channels, USB tuning connection, serial RS232 connection, and 512MB onboard data logging.
Key Features
- Link G4X wire-in ECU
- Onboard digital wideband lambda control
- Supports up to 3 rotors or 6 cylinders sequentially
- 8 injector drives
- 6 ignition drives
- 10 auxiliary outputs
- 512MB onboard data logging
- Built-in barometric pressure sensor
- USB tuning connection
- Serial RS232 connection
- Runs on PCLink software for G4X
Inputs
- 8/10 digital inputs
- 4 temperature inputs
- 9 analog inputs
- 2 trigger inputs
- 2 knock inputs
- 1 LSU 4.9 wideband lambda sensor input
Outputs
- 8 injection drives
- 6 ignition drives
- 10 auxiliary outputs
- +5V sensor power supply
- +8V sensor power supply
- Unused fuel and ignition drives can be used as additional auxiliary outputs
Communications
- 2 CAN bus channels
- 1 serial RS232 connection
- 1 USB tuning connection
Physical Specifications
- Dimensions: 185mm L x 130mm W x 40mm H, without looms
- Weight: 680g
What’s Included
- Link G4X FuryX ECU
- USB tuning cable
- Mounting bracket
Important Notes
- Requires Link “A” and “B” looms or “A” and “B” connector kits, sold separately
- DI 9 and DI 10 pins are used by the second CAN bus
- Professional installation and tuning are recommended
