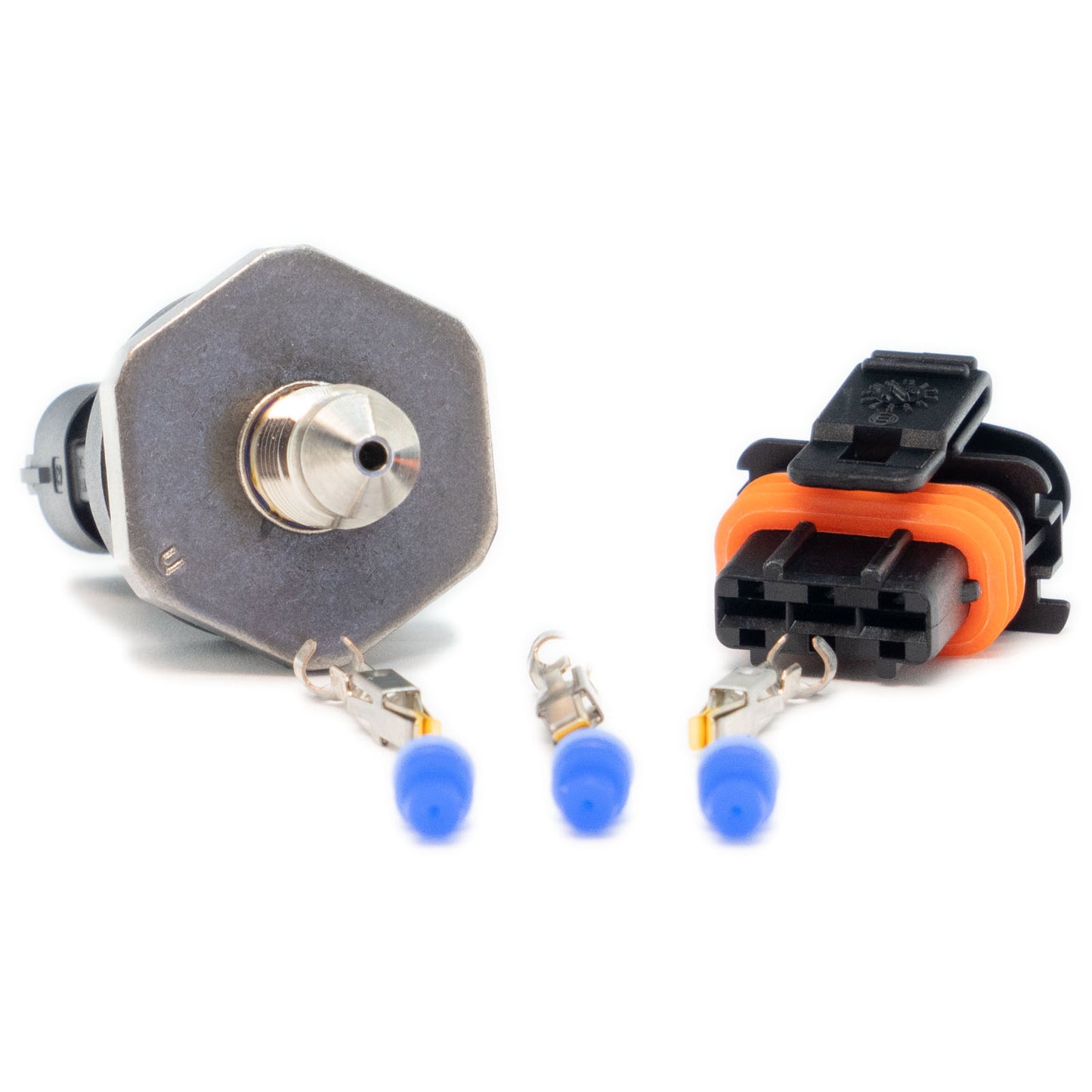

The Link 140 Bar High Pressure Sensor is designed for liquid pressure monitoring in demanding automotive and motorsport applications. With a pressure range of up to 140 Bar / 2030 PSI above atmospheric pressure, it is ideal for fuel, clutch, brake, and other high-pressure liquid systems.
This sensor features an M10x1 thread, 45-degree cone seat, and includes the matching connector kit for installation.
Key Features
- 140 Bar / 2030 PSI pressure range
- Designed for liquid pressure measurement
- Suitable for fuel, clutch, brake, and similar systems
- M10x1 thread
- 45-degree cone seat
- Includes mating connector kit
- Ideal for performance, motorsport, and custom ECU installations
Important Notes
- Reads pressure above atmospheric pressure only
- Cannot be used to read vacuum
